Model |
AC300D |
AC400D |
AC600D |
AC800D |
AC1000D |
AC1200D |
AC1500D |
|
8Ω/2CH（THD=1% 1kHZ)
8Ω/双边额定输出功率 |
300W |
400W |
600W |
800W |
1000W |
1300W |
1500W |
|
4Ω/2CH（THD=1% 1kHZ)
4Ω/双边额定输出功率 |
600W |
600W |
900W |
1200W |
1500W |
1950W |
2250W |
|
8Ω/bridging（THD=1% 1kHZ)
8Ω/桥接输出功率 |
900W |
1200W |
1800W |
2400W |
3000W |
3900W |
4550W |
|
4Ω/bridging（THD=1% 1kHZ)
4Ω/桥接输出功率 |
1100W |
1480W |
2220W |
3000W |
3700W |
4810W |
5550W |
|
THD+N总谐波失真 |
<0.1% |
|
Input sensitivity
输入灵敏度 |
0.775V/1.0V |
|
Frequency response频响 |
20Hz-20KHz，-0.5dB(+/-0.5dB) |
|
S/N rate信噪比 |
>85dB |
|
Damping factor阻尼系数 |
>300 |
|
Crosstalk分离度 |
≥70dB |
|
Slew rate转换速率 |
>20V/μs |
|
Input impedance
输入阻抗 |
20kΩ/10KΩ |
|
Cooling冷却 |
Air flow from front to rear前后散热 |
|
Input输入 |
XLR 3pin-XLR/RCA/TRS 卡侬 |
|
Output输出 |
Sepakon & touch-proof binding posts 四芯插及接线柱 |
|
Front pane indictorl
前面板指示 |
Power / SIG / clip / Protect indicator |
|
Front panel前面板 |
Power switch / Volume control/Monitor the voltage/temperature/time and date in the cabinet电源开关/音量控制/监控柜内电压/温度/时间和日期 |
|
Rear panel后面板 |
Operation mode / Input sensitivity/4-way timing 操作模式/输入灵敏度/四路电源时序 |
|

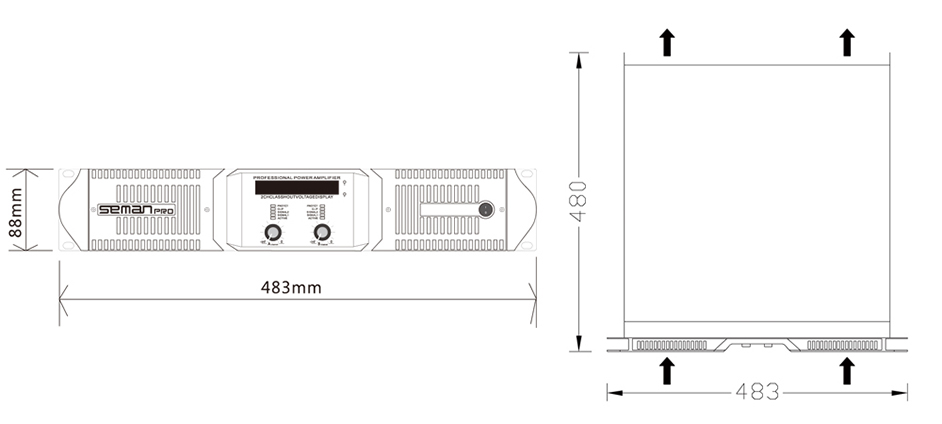

Product dimension（in）
尺寸(mm) |
483x480x88 |
|
Power供电要求 |
AC-220V/50HZ ±10% |
|
G.W（IB）/毛重（KG） |
39.7ib
18kg |
44.1ib
20kg |
48.5ib
22kg |
52.9ib
24kg |
57.3ib
26kg |
61.7ib
28kg |
63.9ib
29kg |
